Shure

Shure Wireless Microphones

This module will connect to the Shure receivers below to provide feedback status as well as some control:

• Shure ULX-D (ULXD4, ULXD4D, ULXD4Q)
• Shure QLX-D (QLXD4)
• Shure SLX-D (SLXD4, SLXD4D)
• Shure Axient Digital (AD4D, AD4Q)

Available actions

Title	Model Support
Set Channel Name <sup>x</sup>	All
Mute/Unmute/Toggle Mute of Channel	ULX & AD
Set Audio Gain of Channel <sup>x</sup>	All
Increase Audio Gain of Channel <sup>x</sup>	All
Decrease Audio Gain of Channel <sup>x</sup>	All
Set Frequency of Channel <sup>x</sup>	ULX, QLX, SLX, & AD
Flash Lights on Receiver	ULX, SLX, AD
Flash Lights on Receiver Channel	SLX, AD
Set slot RF output	ADX only
Set slot RF power level	ADX only
<sup>x</sup> Dynamic variables can be used with these actions

Available feedbacks

Title	Description	Model Support
Battery Level	If the battery bar drops to or below a certain value, change the color of the button.	All
Channel Frequency	If the selected channel's frequency is set, change the color of the button.	ULX, QLX, SLX, & AD
Channel Gain	If the selected channel's gain is set, change the color of the button.	All
Channel Muted	If the selected channel is muted, change the color of the button.	ULX, AD
Channel Status Display	See below	ULX, QLX, SLX, & AD
Interference Status	If the selected channel gets interference, change the color of the button.	ULX, QLX, AD
Transmitter Muted	If the selected channel's transmitter is muted, change the color of the button.	ULX, QLX, & AD
Transmitter Turned Off	If the selected channel's transmitter is powered off, change the color of the button.	All
Slot is Active	If the selected slot's transmitter is active to the channel, change the color of the button.	AD
Slot RF Output	If the selected slot's transmitter RF is set, change the color of the button.	ADX only
Slot RF Power	If the selected slot's transmitter power level is set, change the color of the button.	ADX only
Slot Status	If the selected slot's status is set, change the color of the button.	AD

Channel Status Display

The "Channel Status Display" is a customizable feedback to provide a graphic status readout for a channel, similar to information available on the front panel or in Wireless Workbench.

Axient	ULX-D	QLX-D	SLX-D

Setup

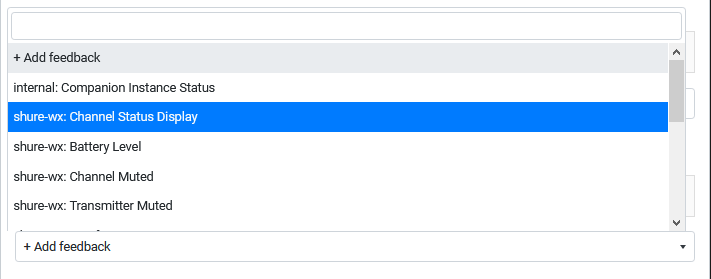

To utilize the feedback, you will utilize the "Instance Feedback" section of a button, selecting the "+ Add feedback" option.

In the dropdown you'll locate the "Channel Status Display" option for your Shure wireless instance.

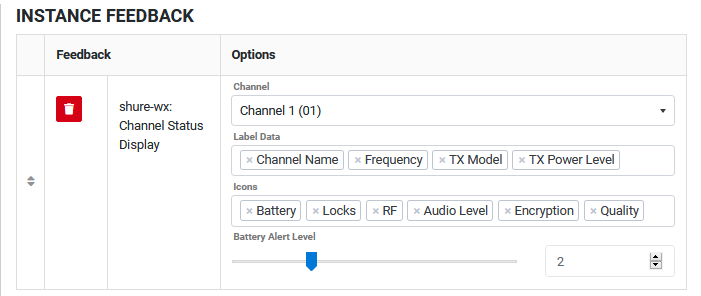

Once added, the feedback will have option to select a channel to display, a field to select text labels to display, a field to select which visual icons should display, and a battery level alert option for the battery icon. A default selection of these options is loaded. Please reference the below tables for further information about them.

Most of the data that presents is automatically populated from the receiver as information changes, however, a data flow called "metering" is used for the audio and RF data. By default the instance will ask for updates to that data every 5 seconds (5000 ms). In the instance's configuration, metering can be disabled or the interval changed to between 50 and 60000 ms. Because of the graphical nature of this display, additional CPU resources are needed to update the displays timely. For this reason it is recommended to test faster metering intervals with your configuration if you would like the audio and RF displays to update faster. Warning: if the metering interval is too low (fast), you can lock yourself out of the GUI to make changes.

Labels

Title	Description	Model Support
Channel Name	This is the channel's name. 8 characters are supported.	All
TX Device ID	This is the device ID programmed in the transmitter.<br />Note that for ULX-D and QLX-D, only ULXD6 and ULXD8 models support this field.	ULX, QLX, & AD
Frequency	Displayed as "XXX.XXX"	All
Group/Channel	Displayed as "XX,YY"	All
Audio Gain	Displayed as "+/- X dB"	All
TX Model	Displays the model of the current transmitter or "Unknown" when off.	All
TX Power Level	Displayed as "XX mW" or "Unknown" when off.	ULX, QLX, & AD
Battery Type	Displayed as "LION", "ALKA", "NIMH", "LITH", or "Unknown" when off.	ULX, QLX, & AD
Battery Runtime	Displayed as "hh:mm" or "Unknown" when off.	All

Labels cannot be re-ordered and will display in the order listed here based on which are selected.

Icons

Title	Description	Model Support	Examples
Audio	Will display a 6 or 8 segment audio meter on the right edge of the bank.	All
Battery	Will display the 5-segment battery indicator in the bottom left of the bank. Based on the "Battery Alert Level" the icon will turn red when the amounts reaches that level. The icon will appear gray when the transmitter is off.	All
Encryption	Will display a key icon in the top right of the bank. This will appear white when encyption is enabled, gray when it is disabled, or red when there's an encryption error with the transmitter.	UlX, QLX, & AD
Locks	Will display a transmitter lock indication on the bottom of the bank. If a lock is detected the lock icon will be displayed along with an 'M' and/or 'P' to designate Menu and Power locks, repsectively.	UlX, QLX, & AD
Quality	Will display 5-segment quality indicator above the battery and lock icons (if enabled) or along the bottom of the bank.	AD
RF	Will display a RF monitoring block appropriate for the model on the right edge of the bank and inside the audio meter (if enabled).	All
