imimot-mitti

Mitti

Basic Configuration

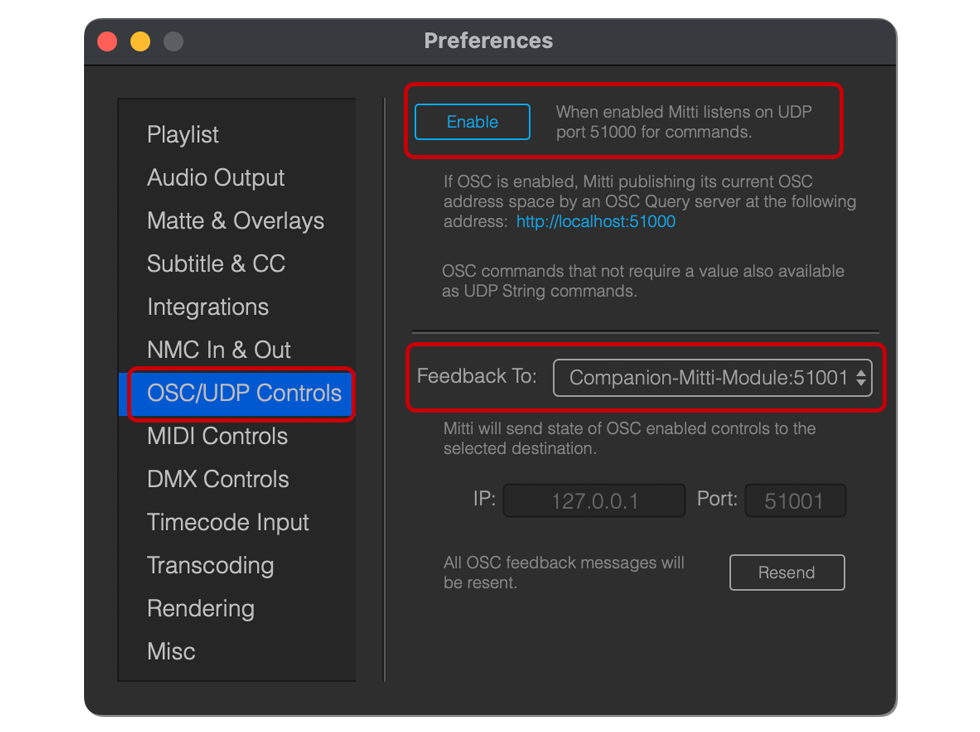

• In Mitti > Settings... > OSC/UDP Controls, select "Enable"
• In the configuration page for the Mitti module in Companion, enter the IP address of the computer running Mitti

Enabling Button Variables & Feedback

• In Mitti > Settings... > OSC/UDP Controls, select Companion-Mitti-Module from the Feedback To dropdown
• If Companion-Mitti-Module is not an option, select Custom then follow the next steps:
  • For IP enter the IP address of the computer running Companion
  • For Port enter the port number that is present on the configuration page for the Mitti module in Companion. By default port 51001 is used
• Optional: Enable Feedback Alert in the Companion module settings. This will show an error when Companion does not receive feedback from Mitti. Disable this feature if you do not plan on using the Feedback features.

Available Actions

• Play
• Toggle Play
• Stop
• Panic
• Rewind
• Jump to previous cue
• Jump to next cue
• Jump to specific cue
• Jump to selected cue
• Jump to cue with name
• Select previous cue
• Select next cue
• Goto 30
• Goto 20
• Goto 10
• Play Selected Cue
• Play cue with number / ID
• Play cue with name
• Play cue at index
• Toggle Fullscreen
• Fullscreen On
• Fullscreen Off
• Toggle Playlist Loop
• Playlist Loop On
• Playlist Loop Off
• Toggle Playlist Transition on Play
• Transition on Play Off
• Transition on Play On
• Resend OSC Feedback

Requires Mitti 2

• Cue Scale
• Cue Position
• Cue Crop
• Cue Rotation
• Cue Hue
• Cue Saturation
• Cue Vibrance
• Cue Brightness
• Cue Contrast
• Cue Opacity
• Set Cue Volume to Value
• Set/ Adjust Cue Playback Speed
• Adjust Current Cue Volume
• Toggle Goto Cue after End
• Goto after End On
• Goto after End Off
• Set Goto after End Cue
• Master Fader
• Toggle / On / Off Video Outputs
• Toggle / On / Off Audio Outputs
• Adjust Playhead
• Scrub Playhead with Timecode
• Locate Playhead with Timecode
• Set In / Out from Playhead

Available Feedback

• Play/Pause Status
• Cue Name - Playing
• Cue Name - Active
• Cue Name - Selected
• Cue ID - Playing
• Cue ID - Active
• Cue ID - Selected
• Cue ID - Audio Enabled
• Cue ID - Pause at Beginning Enabled
• Cue ID - Pause at End Enabled
• Cue ID - Fade In Enabled
• Cue ID - Fade Out Enabled
• Cue ID - Loop Enabled
• Cue ID - Transition Enabled
• Cue ID - Goto Enabled
• Set In / Out from Playhead Available
• Time Remaining on Playing Cue
• Video Outputs Active (requires Mitti 2)
• Audio Outputs Active (requires Mitti 2)

Available Variables

• currentCueName
• currentCueID (requires Mitti 2)
• previousCueName
• nextCueName
• selectedCueName
• selectedCueID (requires Mitti 2)
• playStatus
• cueTimeLeft (will shorten to MM:SS if less than 1 hour)
• cueTimeLeft_hhmmss (will always show full HH:MM:SS timecode)
• cueTimeLeft_h
• cueTimeLeft_m
• cueTimeLeft_s
• cueTimeElapsed
• cueTimeElapsed_hhmmss
• cueTimeElapsed_h
• cueTimeElapsed_m
• cueTimeElapsed_s
• currentCueTRT (will shorten to MM:SS if less than 1 hour)
• currentCueTRT_hhmmss (will always show full HH:MM:SS timecode)
• currentCueTRT_h
• currentCueTRT_m
• currentCueTRT_s
• currentCueAudio
• currentCuePauseAtBeginning
• currentCuePauseAtEnd
• currentCueFadeIn
• currentCueFadeOut
• currentCueLoop
• currentCueTransition
• currentCueGoto
• currentCuePlaybackSpeed
• cue_(number)_cueName (requires Mitti 2)
• cue_(number)_audio (requires Mitti 2)
• video_outputs (requires Mitti 2)
• audio_outputs (requires Mitti 2)
