AtlasIED Atmosphere

This module will allow you to control an AtlasIED Atmosphere AZM4/AZM8.

Configuration

• Enter the IP address of the device in the configuration settings.
• The device will use TCP port 5321.

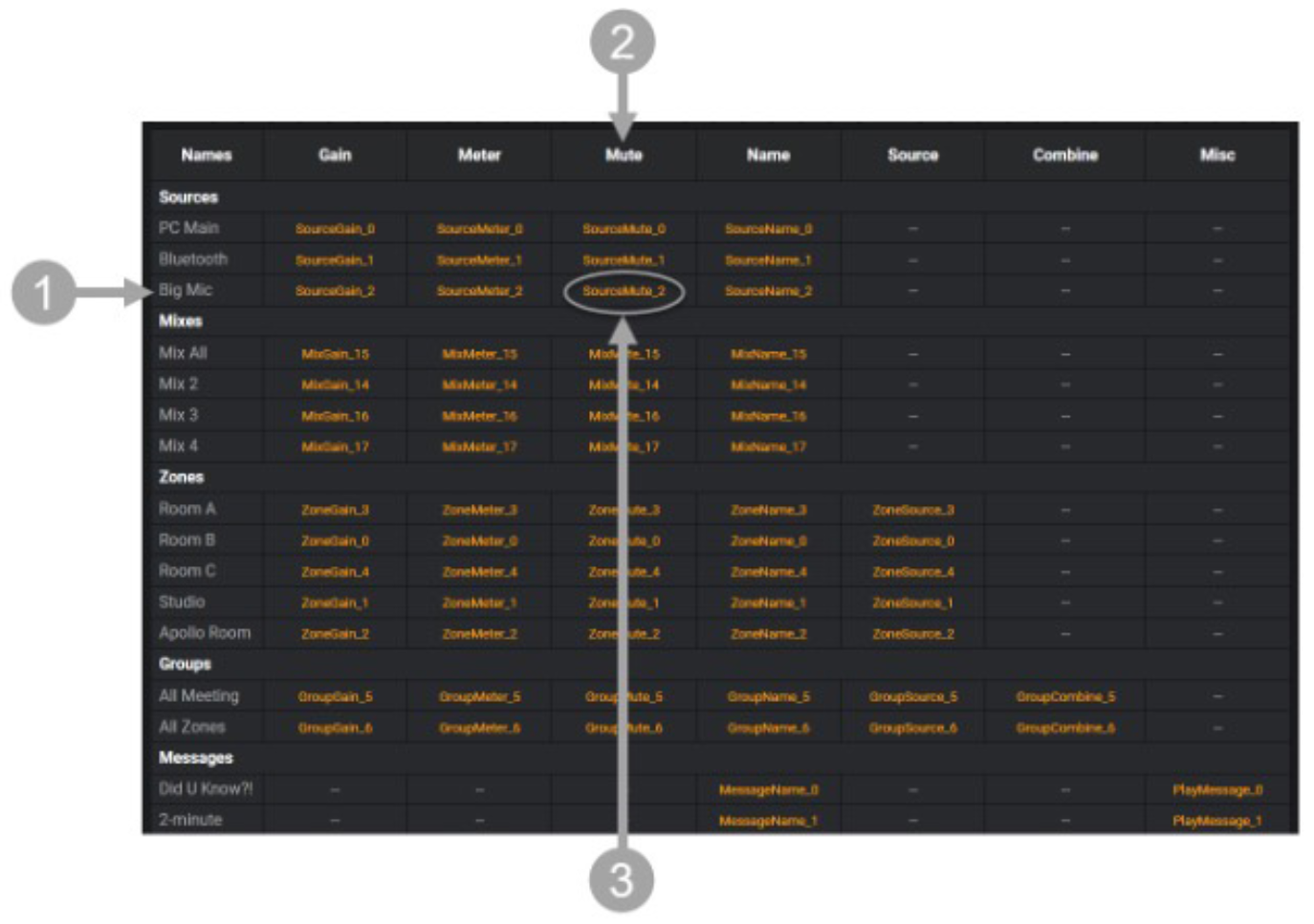

Third party parameter names are dynamically assigned during configuration of the AZM4/AZM8. Please refer to the Third Party Control Message Table in the User Interface under Settings>Third Party Control>Message Table for a listing of all active third-party parameter names.

Actions

• Set Source Gain By Value
• Set Source Gain By Percent
• Bump (Increase/Decrease) Source Gain by Value
• Set Source Mute
• Set Mix Gain By Value
• Set Mix Gain By Percent
• Bump (Increase/Decrease) Mix Gain by Value
• Set Mix Mute
• Set Zone Gain By Value
• Set Zone Gain By Percent
• Bump (Increase/Decrease) Zone Gain by Value
• Set Zone Mute
• Set Zone Source (specify Source Number in Third Party Table)
• Set Group Gain By Value
• Set Group Gain By Percent
• Bump (Increase/Decrease) Group Gain by Value
• Set Group Mute
• Recall Routine
• Recall Scene

Feedbacks

• Zone is Muted
• Source is Muted

Variables

• GPO Preset Name (1-20)
• GPO State (1-2)
• Group (1-12) Gain, Mute, Name, Source, Active
• Loud Noise (1-20) Status
• Mix (1-8) Source (1-14) Gain, Mute
• Mix (1-8) Gain, Mute, Name
• Routine (1-20) Name
• Scene (1-20) Name
• Source (1-14) Gain, Mute, Name
• Zone (1-8) Gain, Mute, Name, Source

Presets
